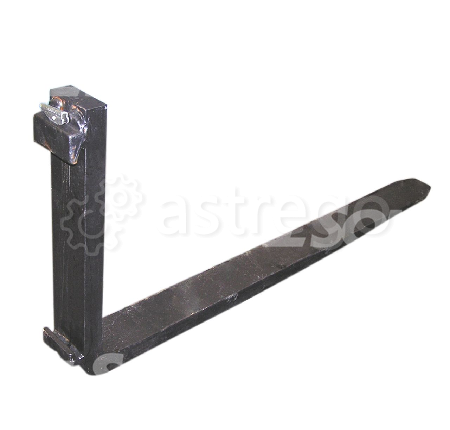

Вилы к погрузчику пара тип каретки 2А сечение вил 100х40 мм, длина 1200 мм

FEM-type fork

Carriage height (mm)
407

Usable length of the fork (mm)
1200

100

40

Mounting class 1 (ISO 2328)
2A

Distance between inside bottom hook and bottom of the fork (ground clearance) (mm)
76

Total back height from bottom to top of the fork back (mm)
538

Capacity/pair on load centre (kg)
2500

Centre of gravity horizontal (mm)
360

Centre of gravity vertical (mm)
110

Load centre (mm)
500

Type of the taper
standard taper

Length of the fork taper (mm)
560

Inner clearance upper hook to back of fork (mm)
16.5

Inner clearance bottom hook to back of fork (mm)
16.5

10

Height upper fixing hook to the bottom of the fork (mm)
470

Smallest distance between the two hooks (measures hook tip to tip) (mm)
382

Width of the upper hook (mm)
100

Width of the lower hook (mm)
85

Material of the forks
33MnCrTiB

Thickness of FEM forkcarrier teeth (mm)
16

Brand of the forks
CAM attachments

50
